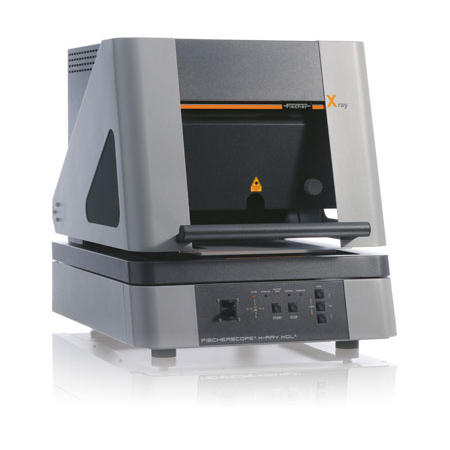

- Bath Analysis Coating Thickness XDL
- XDL 210: Plane support stage, fixed Z-axis
- XDL 220: Plane support stage, motor-driven Z-axis
- XDL 230: Manually operable XY-stage, motor-driven Z-axis
- XDL 240: Motor-driven XY-stage that moves into the loading position automatically, when the protective hood is opened. Motor-driven programmable Z-axis
Applications
- Measurement of electroplated mass-produced parts
- Inspection of thin coatings, e.g., decorative chromium-plating
- Analysis of functional coatings in the electronics and semiconductor industries
- Automated measurements, e.g., on printed circuit boards
- Solution analysis in the electroplating
General Specification
Intended use:Energy dispersive x-ray fluorescence measuring instrument (EDXRF) to determine thin coatings and for the solution analysis.
Element range:Chlorine (17) to Uranium (92) â up to 24 elements simultaneously with option WinFTM® BASIC.
Design:Bench top unit with upwards opening hood
Measuring direction:Top down
X-Ray Source
X-ray tube:Tungsten tube with beryllium window
High voltage:Three steps: 30 kV, 40 kV, 50 kV
Aperture (Collimator):Ã 0.3 mm (11.8 mils), Optional: Ã 0.1 mm (3.9 mils), Ã 0.2 mm (7.9 mils), slot 0.3 x 0.05 mm (11.8 x 2 mils)
Measurement spot:Depending on the measuring distance and on the aperture, the actual measurement. Spot size is shown in the video image.
Smallest measurement spot: approx.
à 0.2 mm (7.9 mils)
X-Ray Detection
X-ray detector:Proportional counter tube
Measuring distance:0 ⦠80 mm (0 ⦠3.2 in)
Distance compensation with patented DCM method for simplified measurements at varying distances. For particular applications or for higher demands on accuracy an additional calibration might be necessary.
Sample Alignment
Sample positioning:Manually
Video microscope:High-resolution CCD color camera for optical monitoring of the measurement location along the primary beam axis,Cross hairs with a calibrated scale (ruler) and spot-indicator,Adjustable LED illumination
Zoom factor:Digital 1x, 2x, 3x, 4x
Evaluation Unit
Computer:Windows®-PC
Software:Standard: Fischer WinFTM® LIGHT
Optional: Fischer WinFTM® BASIC, PDM®, SUPER
Sample support stage
| Sample Stage | ||||
|---|---|---|---|---|
|
| XDL 210 | XDL 220 | XDL 230 | XDL 240 |
| Design | Fixed sample Support | Fixed sample Support | Manual XY-stage | Programmable XY-stage |
| Maximum travel XY | - | - | 95 x 150 mm (3.7 x 5.9 in) | 255 x 235 mm (10 x 9.2 in) |
| Travel speed XY | - | - | - | ⤠80 mm/s (3.1 in/s) |
| Repeatability precision XY | - | - | - | ⤠0,01 mm (0.4 mils)(*1) |
| Usable sample placement area | 463 x 500 mm (18.2 x 19.7 in) | 463 x 500 mm (18.2 x 19.7 in) | 420 x 450 mm (16.5 x 17.7 in) | 300 x 350 mm (11.8 x 13.8 in) |
| Z axis | Fixed Position (Top/Middle/Bottom) | Electrically adjustable | Electrically adjustable | Programmable |
| Travel Z axis | - | 140 mm (5.5 in) | 140 mm (5.5 in) | 140 mm (5.5 in) |
| Max. sample weight | 20 kg (44 lb) | 20 kg (44 lb) | 20 kg (44 lb) | 5 kg (11 lb) / 20 kg (44 lb)(*2) |
| Max. sample height | 155/90/25 mm (6/3.5/1 in) | 140 mm (5.5 in) | 140 mm (5.5 in) | 140 mm (5.5 in) |
| Laser pointer (class 1) to | - | - | Yes | Yes |
Electrical Data
Power supply:AC 115 V or AC 230 V 50 / 60 Hz
Power consumption:max. 120 W, without evaluation PC
Protection class:IP40
Dimensions
External dimensions:Width x depth x height [mm]: 570 x 760 x 650 mm, [in]: 22 x 30 x 26
Interior dimensions:Width x depth x height [mm]: 460 x 495 x see max. sample height measurement:
chamber:[in]: 18 x 19.5 x 26 x see max. sample height
Weight:XDL 210: 94 kg (207 lb); XDL 220: 99 kg (218 lb); XDL 230: 107 kg (235 lb);
XDL 240: 120 kg (264 lb)
Environmental Conditions
Operating temperature:10 °C â 40 °C / 50 °F â 104 °F
Storage/Transport0 °C â 50 °C / 32 °F â 122 °F temperature:
Admissible air humidity:⤠95 %, non-condensing
Standards
CE approval:EN 61010
X-Ray standards:DIN ISO 3497 and ASTM B 568
Approval:Fully protected instrument with type approval according to the German regulations.
